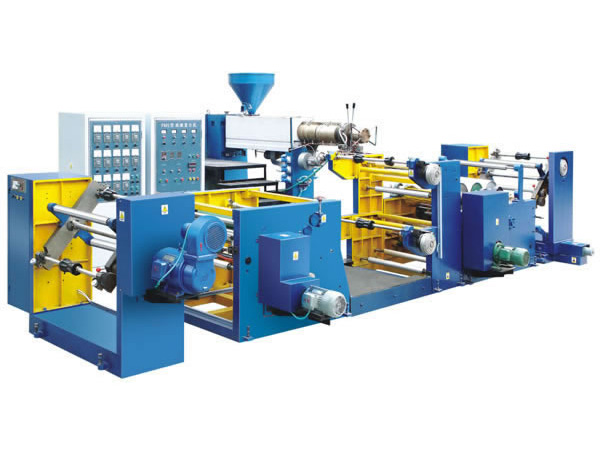

JDLM

Our JDLM film laminating machine can laminate various compound materials like LDPE, PP, EVA, EAA, etc. with base materials like BOPP, PET, aluminum foil, roller paper, and cloth, etc., to produce high grade packing bags. It is extensively used in food, video and medicine packaging industries.

Features of JDLM Film Laminating Machine:
1. Branch-type adjustable die head is available.
2. In order to ensure the best laminating effect and long term high-speed operation, our film laminating machine is designed with a three-roller type film-coating device.
3. Variable frequency controlled extruder motor.
4. Magnetic powder brake and clutch are adopted to control the rewinding and unwinding tension.
5. Our film laminating machine is a perfect integration of pneumatic and electrical components. High safety operation is guaranteed as a result of its safety protection design.
6. This film coating and laminating machine can realize roll exchange without stop, because material unwinding and rewinding device are designed in duplex turret type and are equipped with a torque motor.
7. Trim cutting device is available.
8. The extrusion unit is designed with an automatic constant temperature system. The cooling blower will ensure the temperature within acceptable range.
9. Auto meter-counter is equipped.
10. Auto-material-feeding system is optional.

Technical Parameters of JDLM Film Laminating Machine

Type JDLM-600 JDLM-800 JDLM-1000
Max-Laminating width 600mm 800mm 1000mm
Diameter of first roll-material Φ500mm Φ500mm Φ500mm
Diameter of second roll-material Φ450mm Φ450mm Φ450mm
Inside Diameter of roll core Φ76mm Φ76mm Φ76mm
Max-Laminating Speed 80m/min 80m/min 80m/min
Diameter of Screw Φ45mm Φ65mm Φ90mm
Screw L/D 34:1 34:1 34:1
Weight of Machine 10000kg 12000kg 15000kg
Overall Dimension 9700*7000*2000mm 10000*7500*2300mm 10300*8000*2600mm

Jianda Machinery Company is a professional film laminating machine manufacturer and supplier based in China. Our company is engaged in producing and selling a wide range of plastic processing machines, including double layer stretch film extruders, compound PE air bubble film machines, and plastic cup and tray thermoforming machines, and so on.
All our plastic machines are offered with high quality and at a low price. Currently, our film laminating machines and other products are sought after in Thailand, Russia, Italy, Colombia, Argentina and many other countries. Welcome to choose our products.
