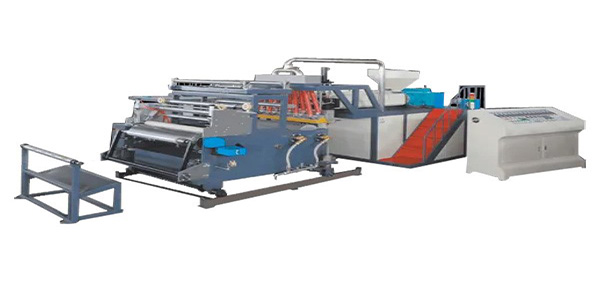

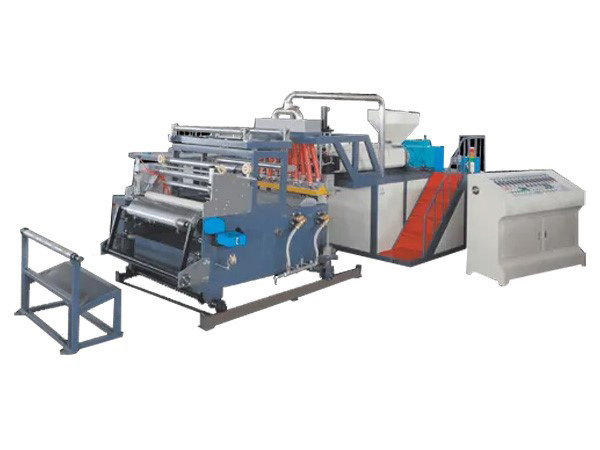

JDCPE/1000-80/60B Double-Layer Stretch Film Co-Extruder
JDCPE models of double-layer stretch film co-extruder adopt LDPE and LLDPE as the raw material for production of stretch film. The film is ideal packaging material for use in industries such as building material, auto parts, and hardware.

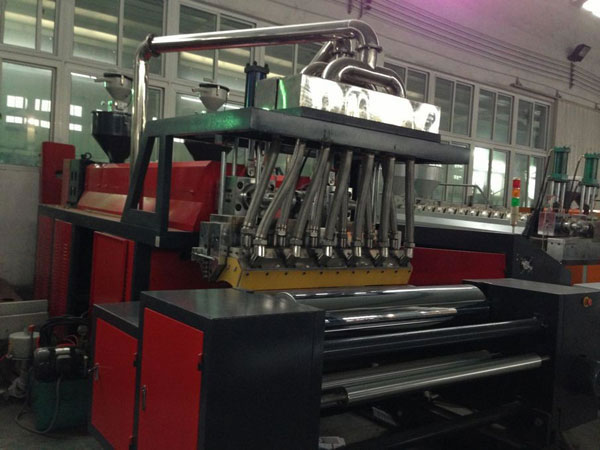

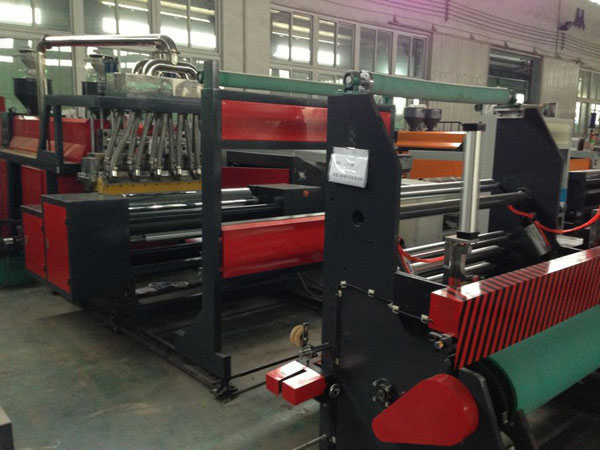

Our double-layer stretch film co-extruder mainly consists of the extruder, traction unit, leveling unit, edge trimming unit, PLC controlled winding unit, and finished roll automatic changing unit. With dual-screw design, the equipment is low noise, and offers stable performance.
Technical Data
| Item | Parameters |
| Screw diameter | Φ80mm & φ60mm |
| Length diameter ratio | 30: 1 |
| T-die width | 1300 mm |
| Finished film width | 1000mm |
| Finished film thickness | 0.01-0.03mm |
| Output | 90kg / h |
| Main motor power | 30kw / 18.5kw |
| Traction motor power | 2.2 kw |
| Moving motor power | 0.55 kw |
| Winding motor power | 2.2kw |
| Air pressure | 0.8mpa |
| Air consumption | 3m3 / min |
| Water consumption | 0.5 m3 / h |
| Rated heating power | 66kw |
| Total power | 110kw |
| Machine size | 9200mm×2350mm×2400mm |
| Power supply | 380 / 3 / 4 / 50 |
-
