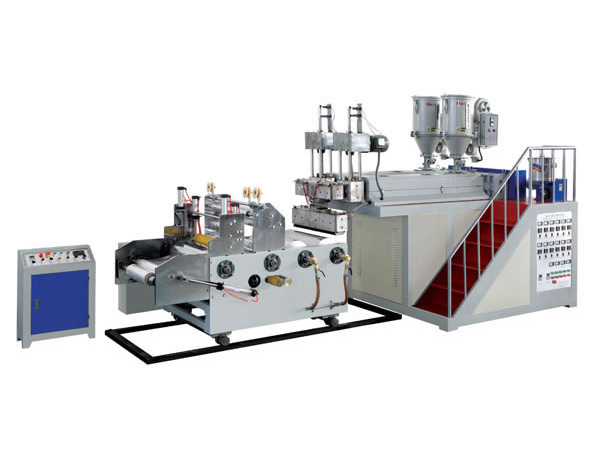

Automatic 2 Layer Stretch Film Extruder
JDCPE-60/45

This machine also can be used as either a LDPE film extruder or a LLDPE film extruder. As a result, JDCPE-60/45 automatic 2 layer stretch film extruder is applicable for producing LDPE or LLDPE stretch film for building material and hardware parts packaging.
This film extruder adopts two screws. If want to produce stretch film with only one side adhesive, we need to feed different raw materials to two different hoppers.

Features of JDCPE-60/45 Automatic 2 Layer Stretch Film Extruder:
1. Nitrogen treated 38CRMOALA alloy is adopted to make screws and cylinders of our film extruders to ensure a capacity of anti-corrosion and long service lifetime etc.
2. Cycle water cooling device guarantees the best transparency of produced stretch films.
3. Auto change-over and auto cutting are applied in the rewinding part.

Technical Parameters of Automatic 2 Layer Stretch Film Extruder:

Model	JDCPE-60/45
Diameter of screw	φ50mmx2
Screw L/D	30:1(L/D)
Width of products	200-600mm
Thickness	0.012-0.05mm
Output	40kg/h
Main motor power	7.5kwx2
Heating power	30kw
Machine weight	3.5T
Overall dimensions	5,600×2,600×1,800mm
Power supply	380/3/4/50(Volt/Ph/Line/Hz)

Notes: water, gas, electricity supply for our equipment should be offered by users.
