Cup Lid Forming Machine

This product has been discontinued and removed from our shelves.

Description

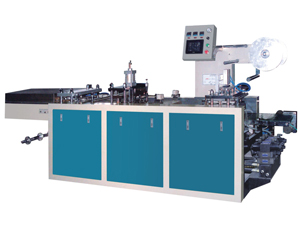

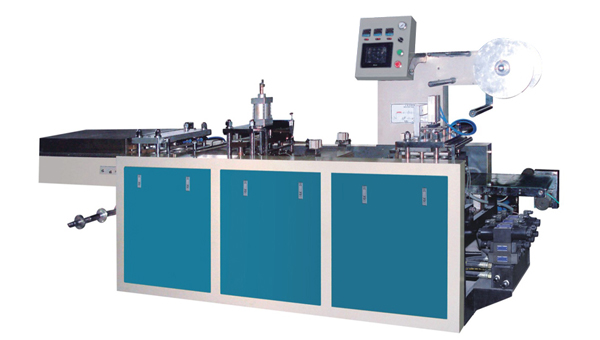

JDBGJ-350 automatic cup lid forming machine works with PS/PVC/PET sheet roll, the finished product is cup lid/cover or tray.

Main technical parameters

Model	JDBGJ-350L
Punching speed	20-45cycles/min.
Max. forming depth	50mm
Max. forming area	220mm *330mm
Air-compressor	0.2m3/min
Pressure	0.4-0.7MPa
Power	20kw
Overall dimension	4200mm ×750mm×1700mm
Weight	1000kg
Note: as the products are developing day by day, the technical data are subject to change without notice. Different size model can be custom-made.
