This product has been discontinued and removed from our shelves.

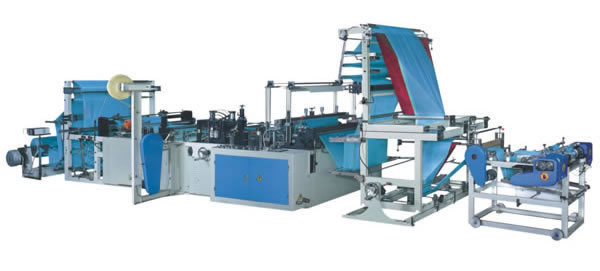

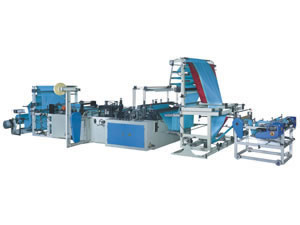

Microcomputer Garbage Bag Making Machine
Our PLC controlled garbage bag making machine features high automation, auto punching, auto-conveying for finished products and high production capacity.
Application of Microcomputer Garbage Bag Making Machines:
Our microcomputer garbage bag making machine uses rolled films, which are usually made of LDPE and HDPE, to make various vest bags.
It can seal and cut HDPE, LDPE and PP film. It is an ideal equipment to produce plastic vest bags and flat bags in plastic bag making industries.
Features of Microcomputer Garbage Bag Making Machine
This plastic bag making machine is designed with photoelectric auto feeding device, automatic constant temperature control device, and static elimination device, and auto counting device, etc. It is characterized by stable performance and strong sealing. It is the most economical sealing and cutting equipment for plastic packing enterprises.
Technical Parameters of Microcomputer Garbage Bag Making Machine:
Type | ZD-GFQ-600 | ZD-GFQ-700 | ZD-GFQ-900 |
Max. bag-making width: | 160-260mm | 160-300mm | 160-380mm |
Max. bag-making length: | 320-650mm | 320-650mm | 320-650mm |
Bag-making thickness: | 0.015-0.35mm | 0.015-0.35mm | 0.015-0.35mm |
Bag-making speed | 60-100pcs/min×4 | 60-100pcs/min×4 | 60-100pcs/min×4 |
Air pressure: | 5kg/cm2 | 5kg/cm2 | 5kg/cm2 |
Total power: | 7kw | 8kw | 9kw |
Weight of the machine: | 1300kg | 1400kg | 1500kg |
Overall dimensions: | 5300×1200×1800mm | 5300×1300×1800mm | 5300×1500×1800mm |
Jianda Machinery Company is a professional microcomputer garbage bag making machine manufacturer in China. It is located in Ruian, Zhejiang Province where offers convenient access to airport, water deep pier and highway. You can choose the best transport way depending on your situation.
In addition to plastic garbage bag forming machines, we can also provide a variety of other plastic machines, such as air bubble film machines, film extruders, and blow film machines and so on. They are designed with good quality and low price. Welcome all walks of purchasers to contact us.
Jianda Machinery Co.,Ltd. is a plastic-processing machinery manufacturer in China, primarily engaged in the developing and manufacturing of air bubble film extrusion machine, stretch film extrusion machine, plastic thermoforming machine, lamination extrusion machine
